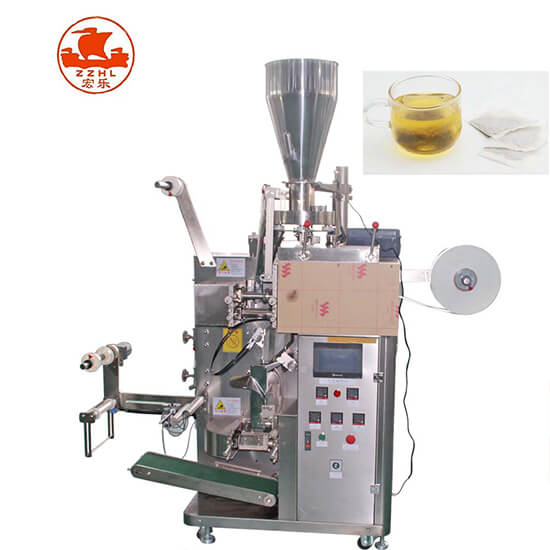

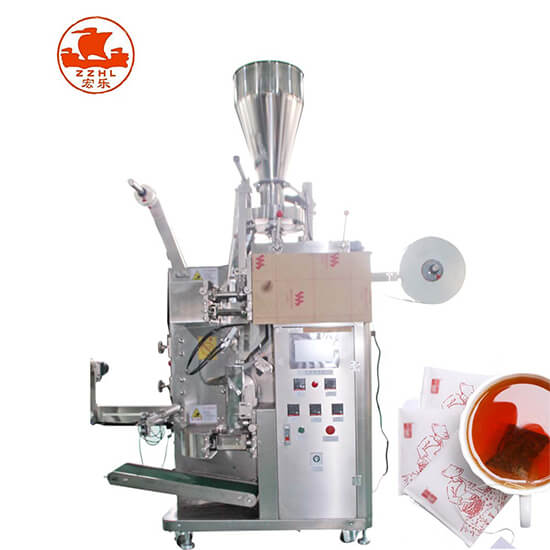

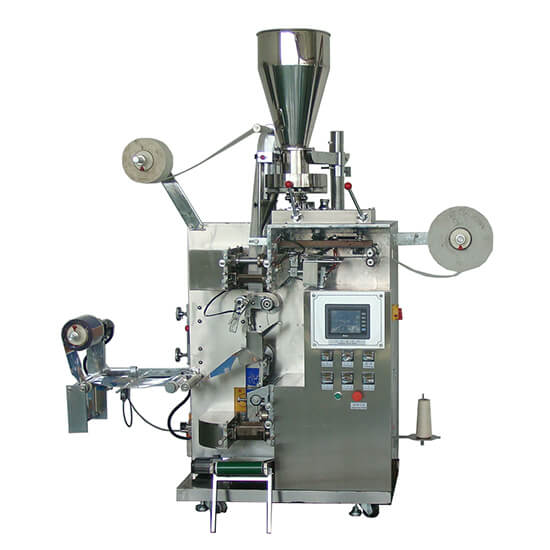

The machine is suitable for tea, herbal tea, health tea grassroots small particles inside and outside the bag packaging.
Function :
1. Outside Paper consists of stepper motor control, bag length stable, accurate positioning;
2. Using the PID temperature controller, temperature control more accurate;
3. PLC control action of the machine, man-machine interface display, easy to operate;
4. All can contact materials of SUS304 stainless steel, ensure health of products;
5. The part of the working cylinder adopts imported parts, guarantee the working accuracy and stability.
6. The native additional device can complete the flat cutting, date printing, easy tear etc.
| Model number | YD-169 |
| The sealing form | three edge sealing |
| Measuring range | 1-5 g/bag |
| Inner bag size | length 50—75 mm; width 50—75 mm |
| Outer bag size | length 85—120 mm; width 75—95 mm |
| Label size | 25X25 (length * width) |
| Production capacity | 30-50 bags/min |
| Input power | 220V/50HZ single phase |
| Total power | 3.7kw |
| Whole machine weight | 650KG |
| Dimensions | 1050X700X1300 (length * width * height) (mm) |
-
This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
280 350 Model Automatic Powder Packing Machine
-
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
520 Type Automatic Powder Packing Machine
-
Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
HL-GDF Full Automatic Powder Filling and Packing Machine
-
Suitable for quantitative filling of various bottles, cans and bags,Photoelectric induction blanking, or optional foot switch blanking,Feedback scale and indexing value can be adjusted to meet various accuracy requirements.
Semi-automatic Powder Packaging Machine
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
