Automatic Case Bag Palletizer Level Palletizing Machine Stacker Machine

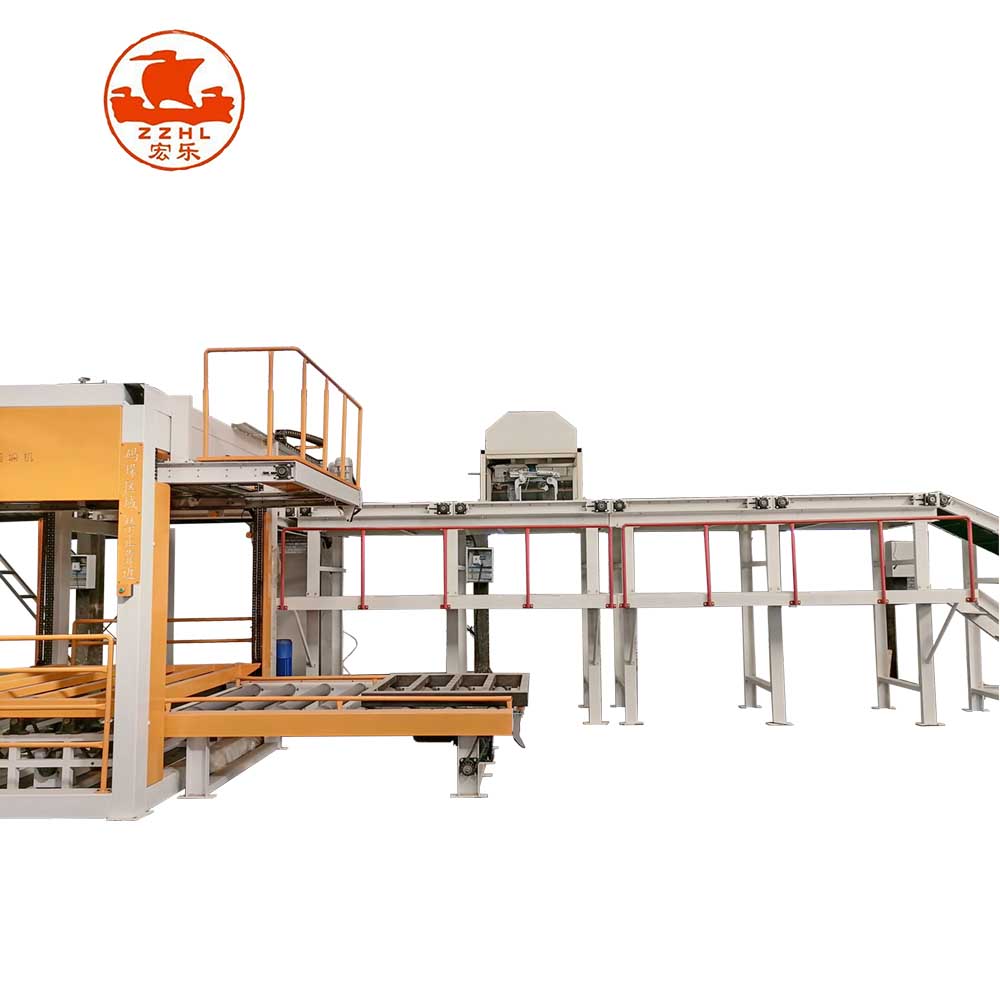

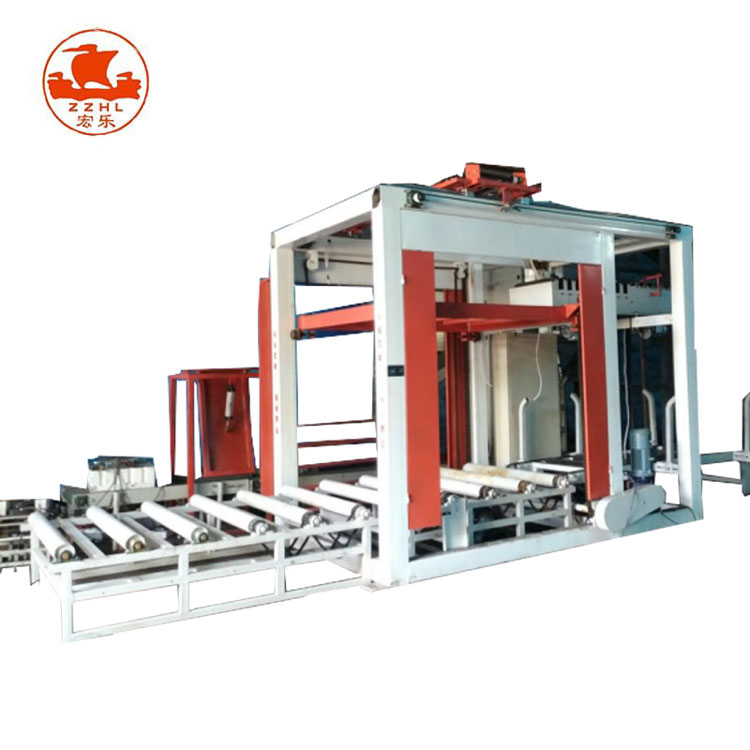

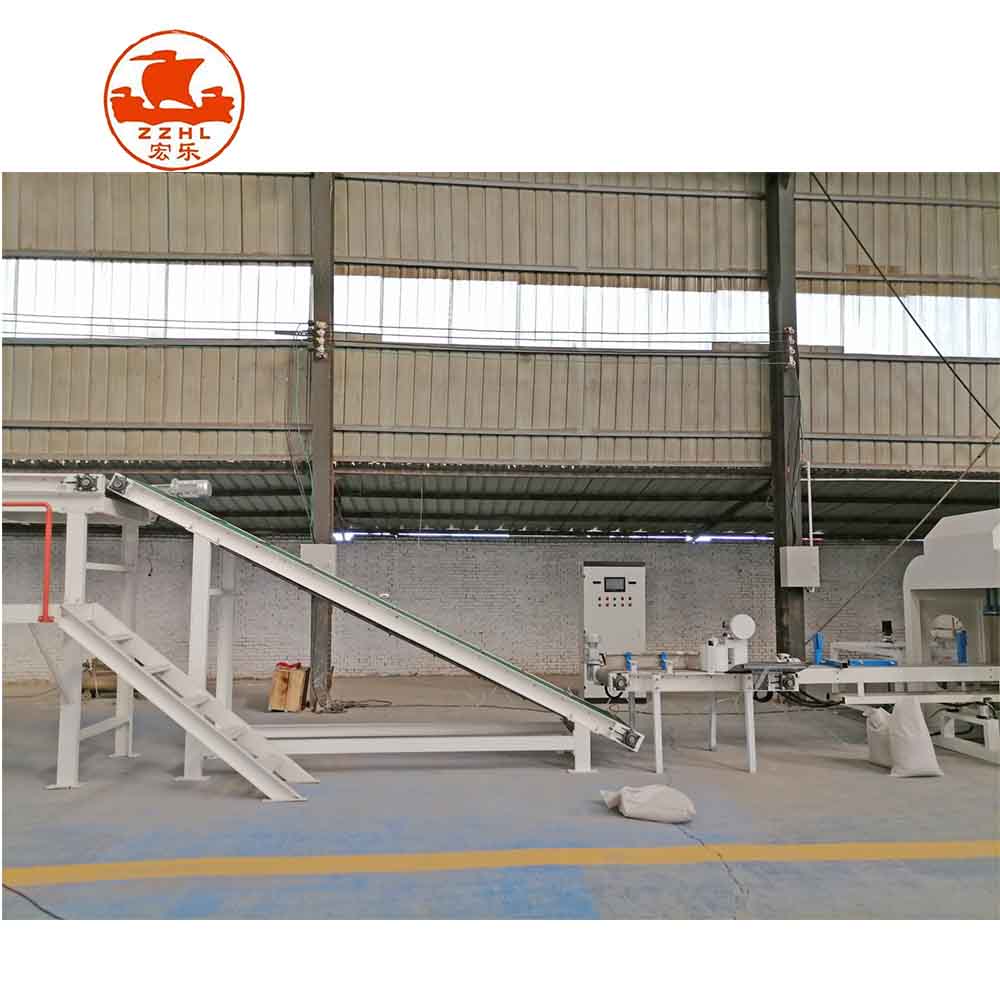

The filled bags enter the flattening and vibrating conveyor through the shaping conveyor, climbing conveyor, etc. The flattening and vibrating conveyor will level the bags and then enter the marshalling conveyor. The marshalling mechanism of the palletizer is automatic according to the set process Place the bag code at the corresponding position on the pallet; when a layer is coded, the elevator will automatically lower the height of a layer of material bag, that is, code a layer; sequentially cycle the code and place it to the setting layer (set by the user in advance, such as 6, 8 or 10 layers) is a stack. After the stack is stacked, the elevator will automatically lower to the lowest position, and will be automatically transported to the finished product pallet conveyor to unroll the stack to the winding machine and then be transported by forklift.

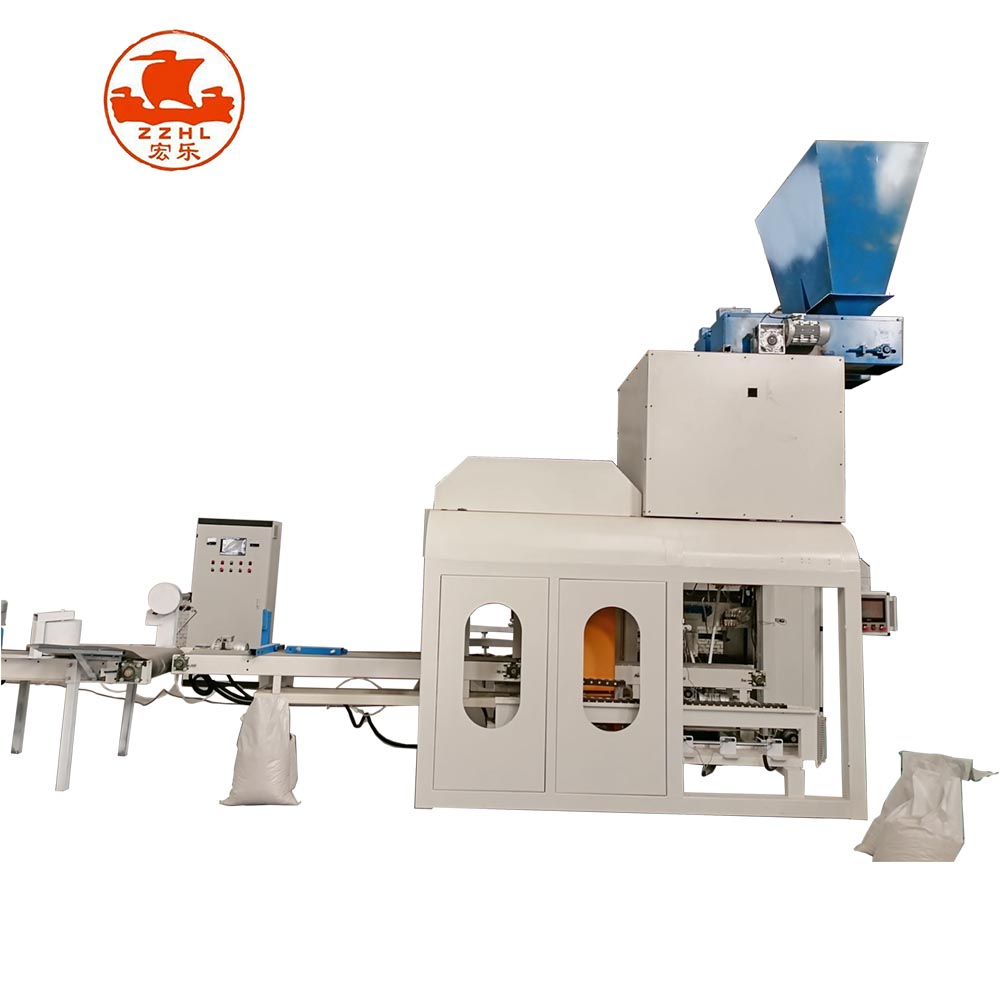

The automatic packaging machine is interlocked with the automatic palletizer, one side stops and the other side automatically stops. One party runs and the other runs automatically.

Power supply configuration: AC 380V±10%, 50Hz±2%, three-phase four-wire

Packaging machine power: total power 15kw.

Palletizer power: total power 15kw.

Compressed air: >=0.5Mpa; air consumption is 1.5m³/h.

Ambient temperature: -10℃~+45℃

Environmental humidity: 45-95%RH, no condensation;

Bag specifications: length × width: (500-1200mm) × (300-800mm) woven bag, paper bag or plastic bag

Hourly output: 20-25 tons/hour (50kg/bag actual output).
